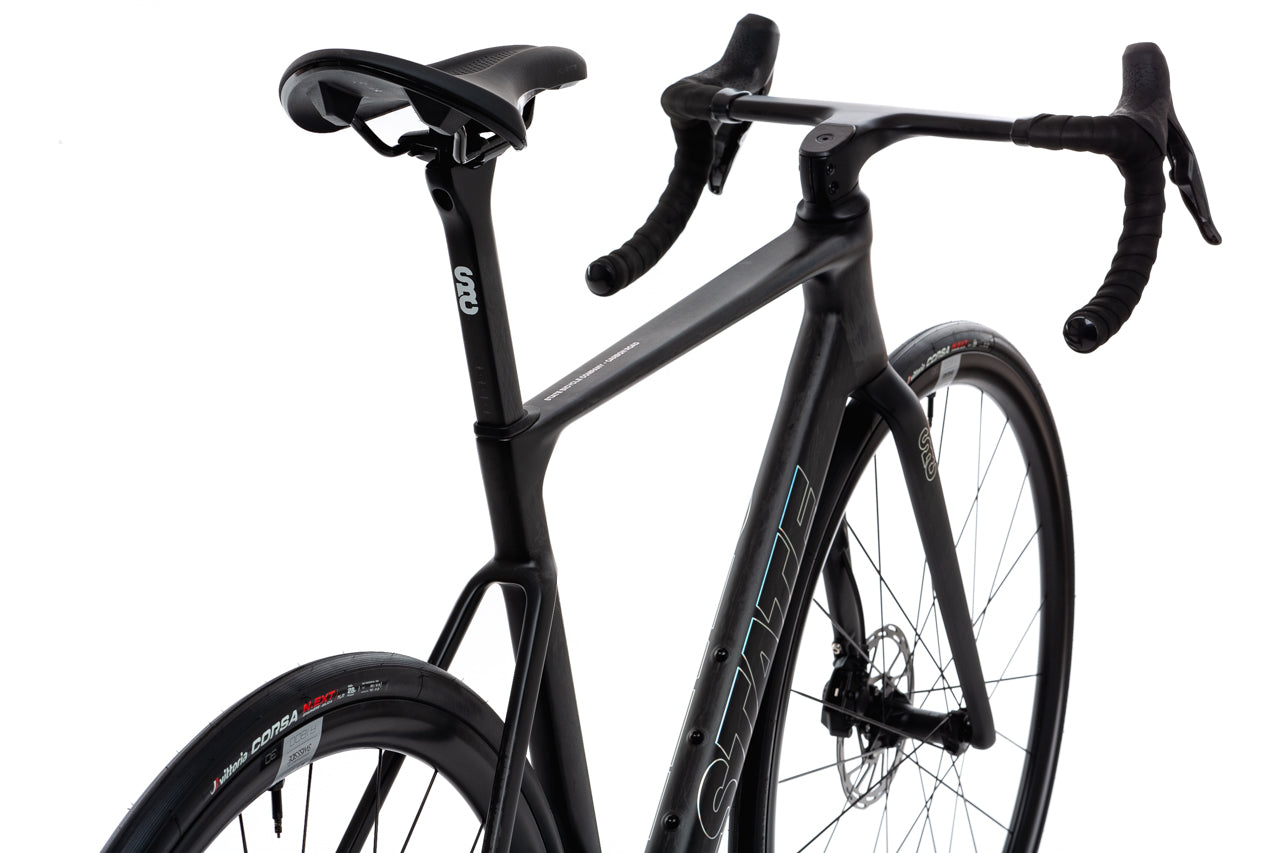

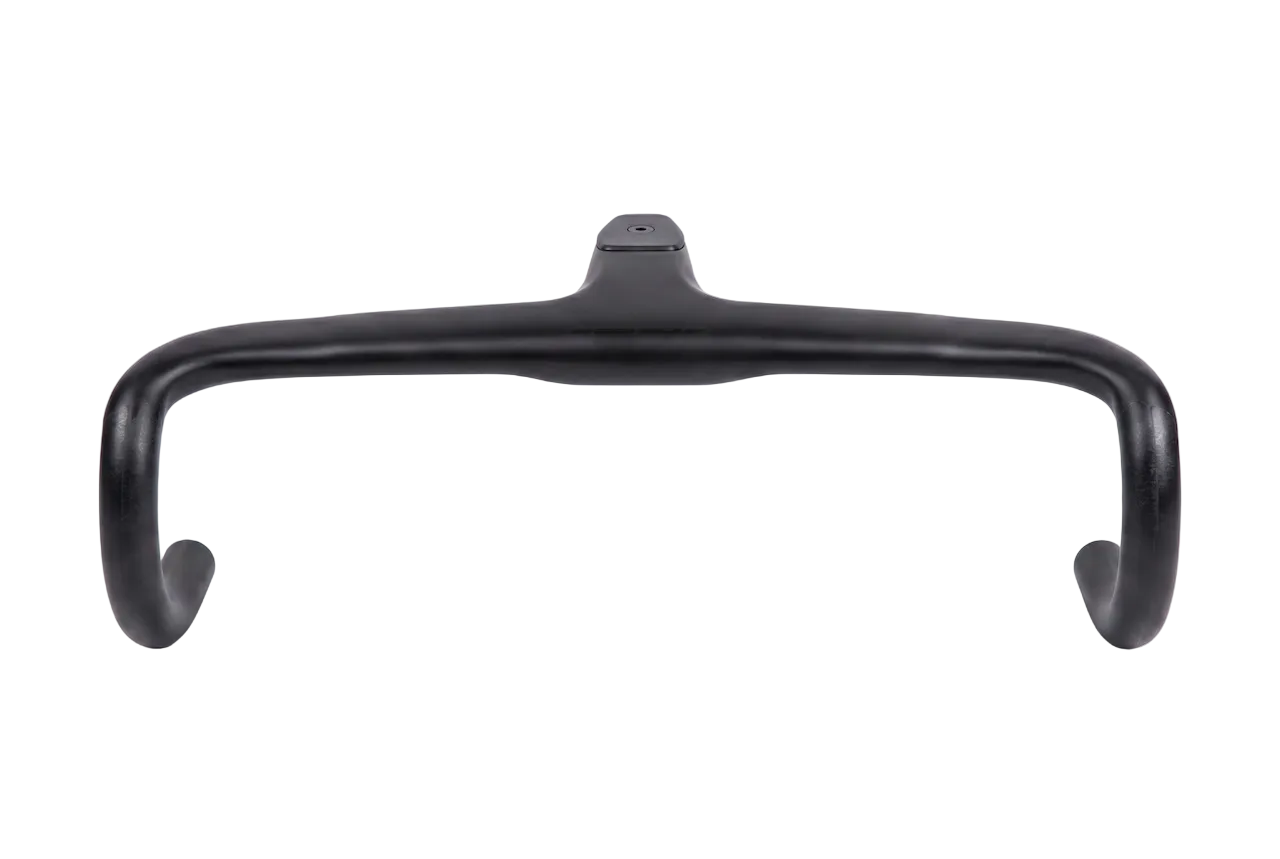

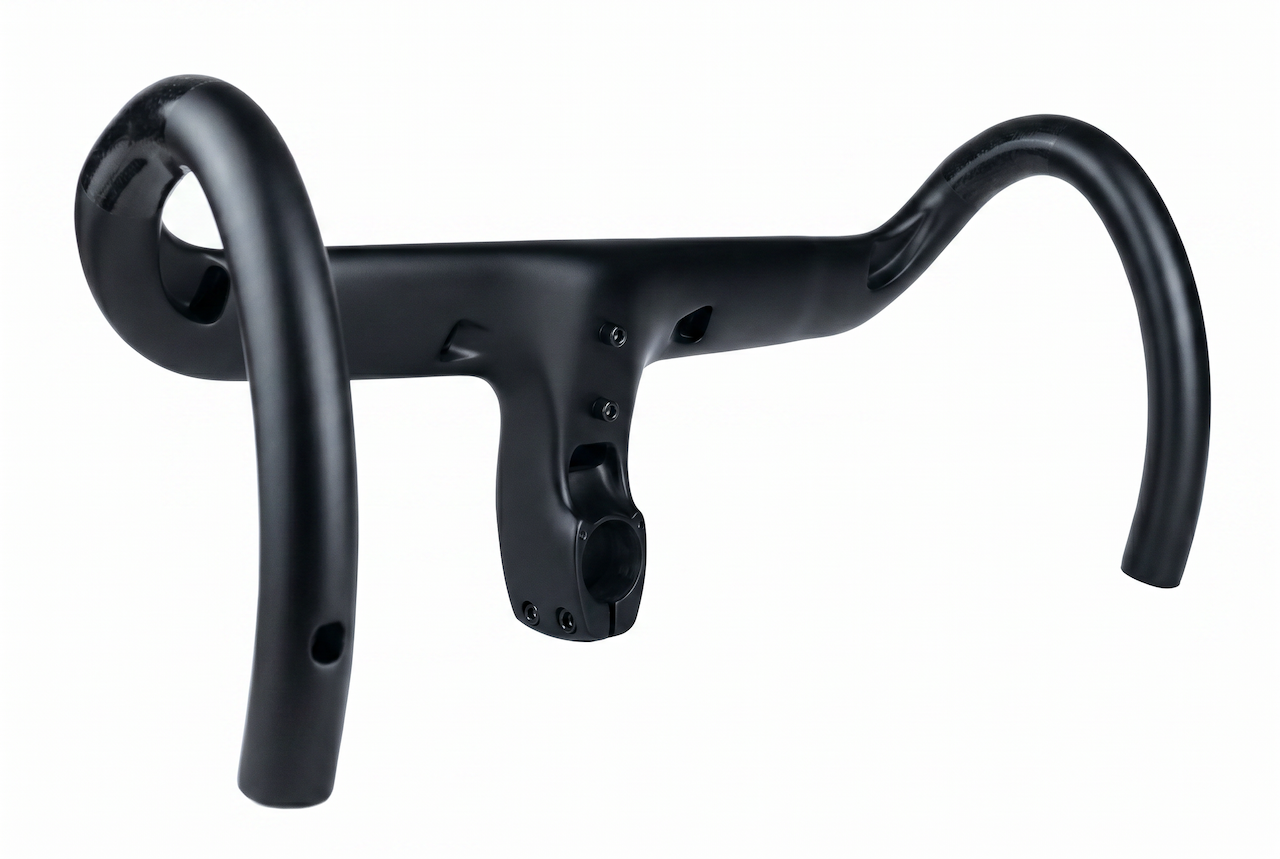

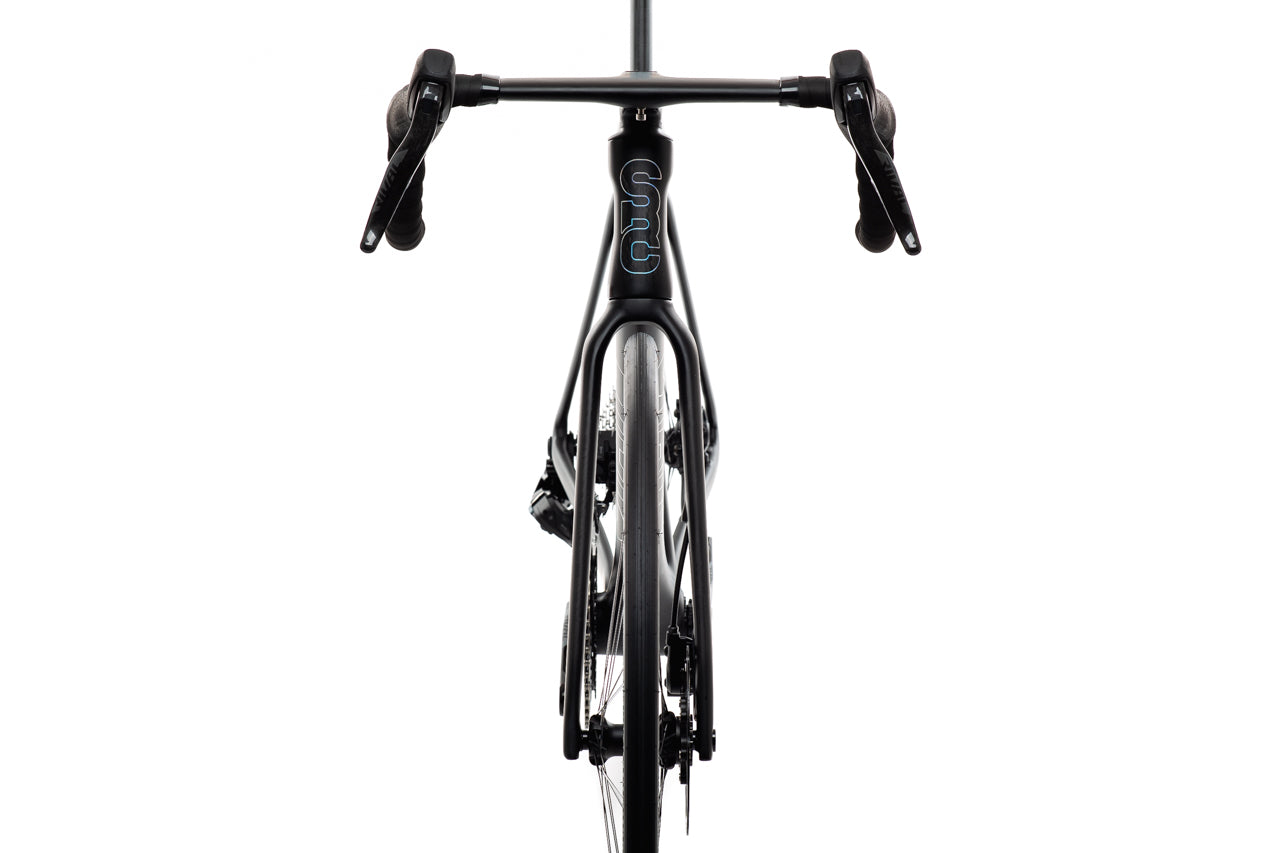

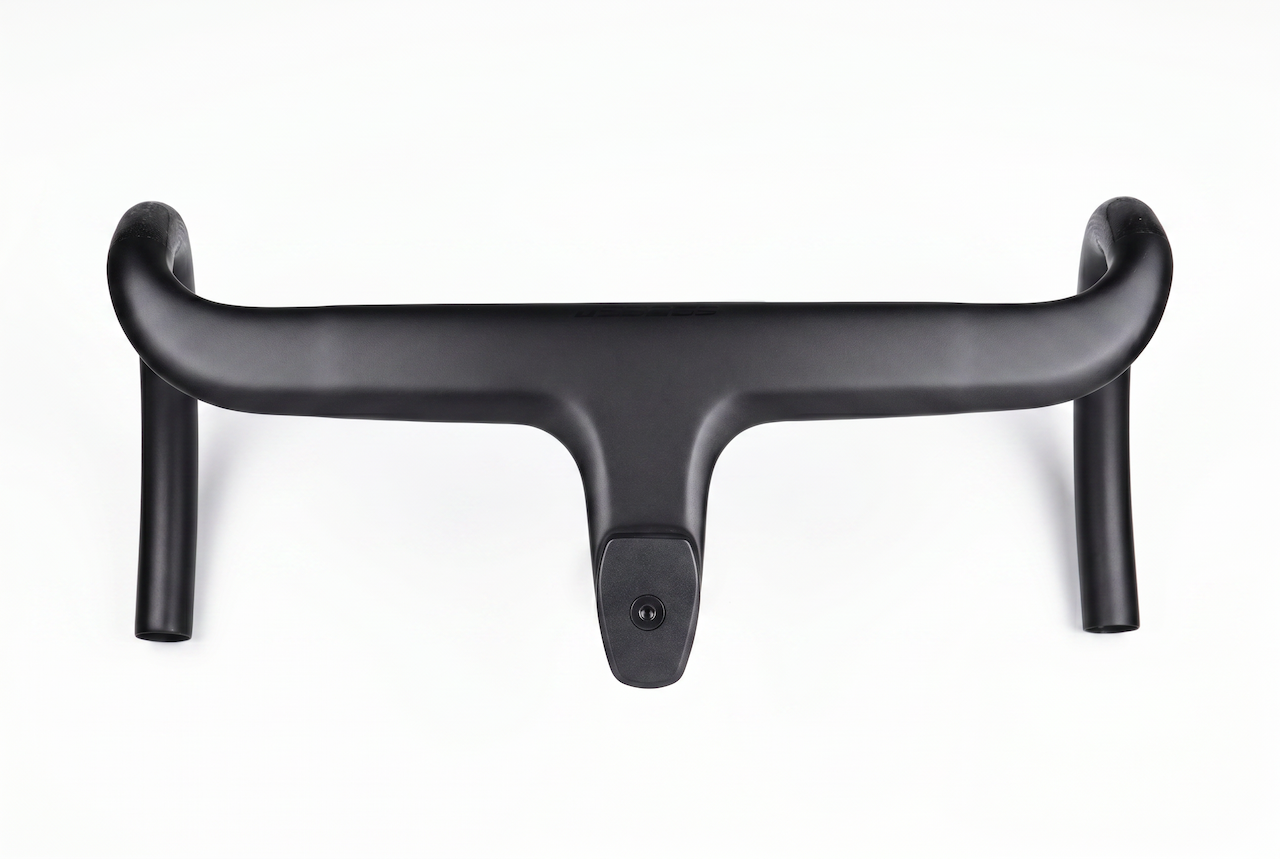

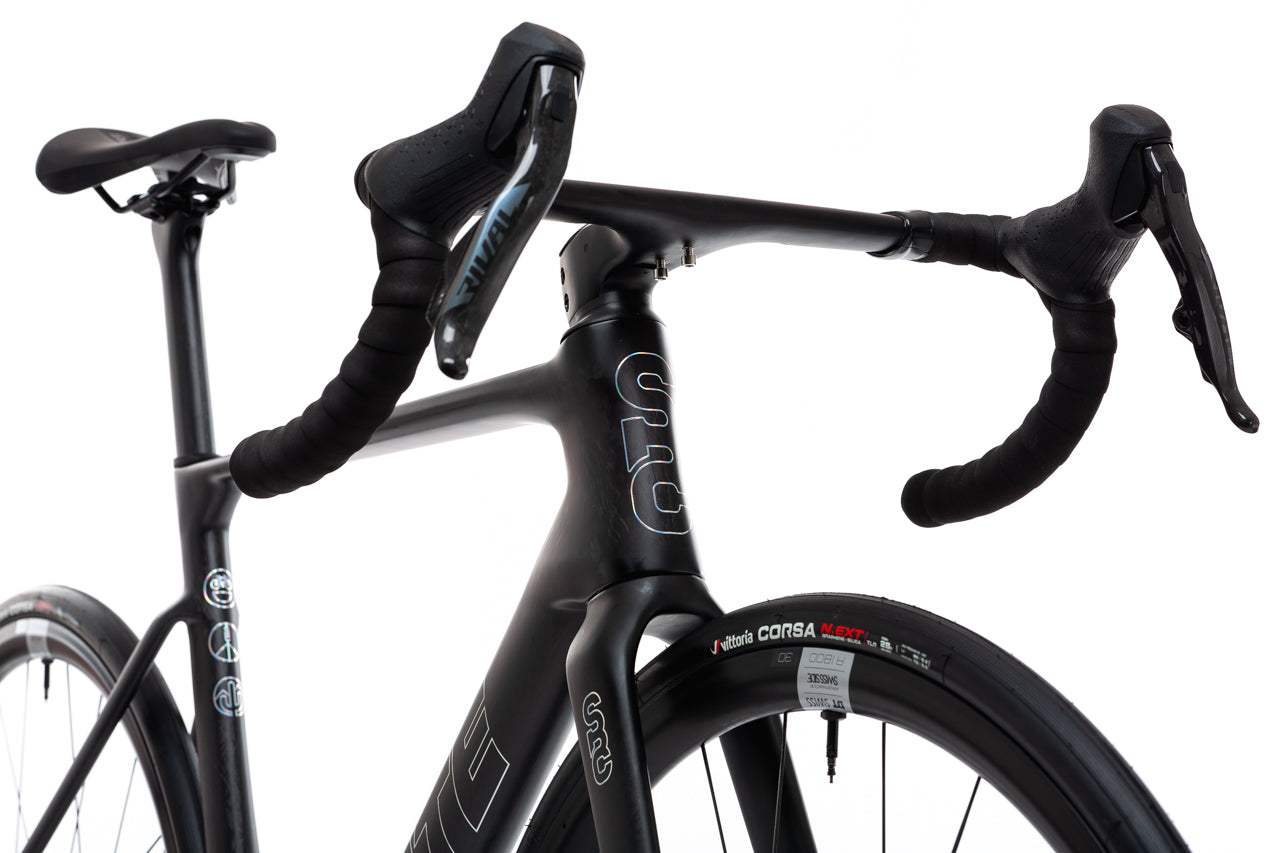

One bar. One stem. Zero compromises. The State Integrated Carbon Cockpit consolidates your setup into a clean, aerodynamic package engineered for riders who demand stiffness, comfort, and weight savings — all at once. Designed for the State Carbon Road Bike and compatible with leading internal routing systems, this cockpit is built to perform from the first pedal stroke.

Cut Through the Air
A refined, flattened top section reduces frontal drag at speed without sacrificing the rigidity needed for aggressive, race-ready riding.

Smooth Out the Road
An advanced proprietary carbon fiber layup damps road vibration before it reaches your hands, delivering confident control on rough surfaces while keeping responsiveness fully intact.

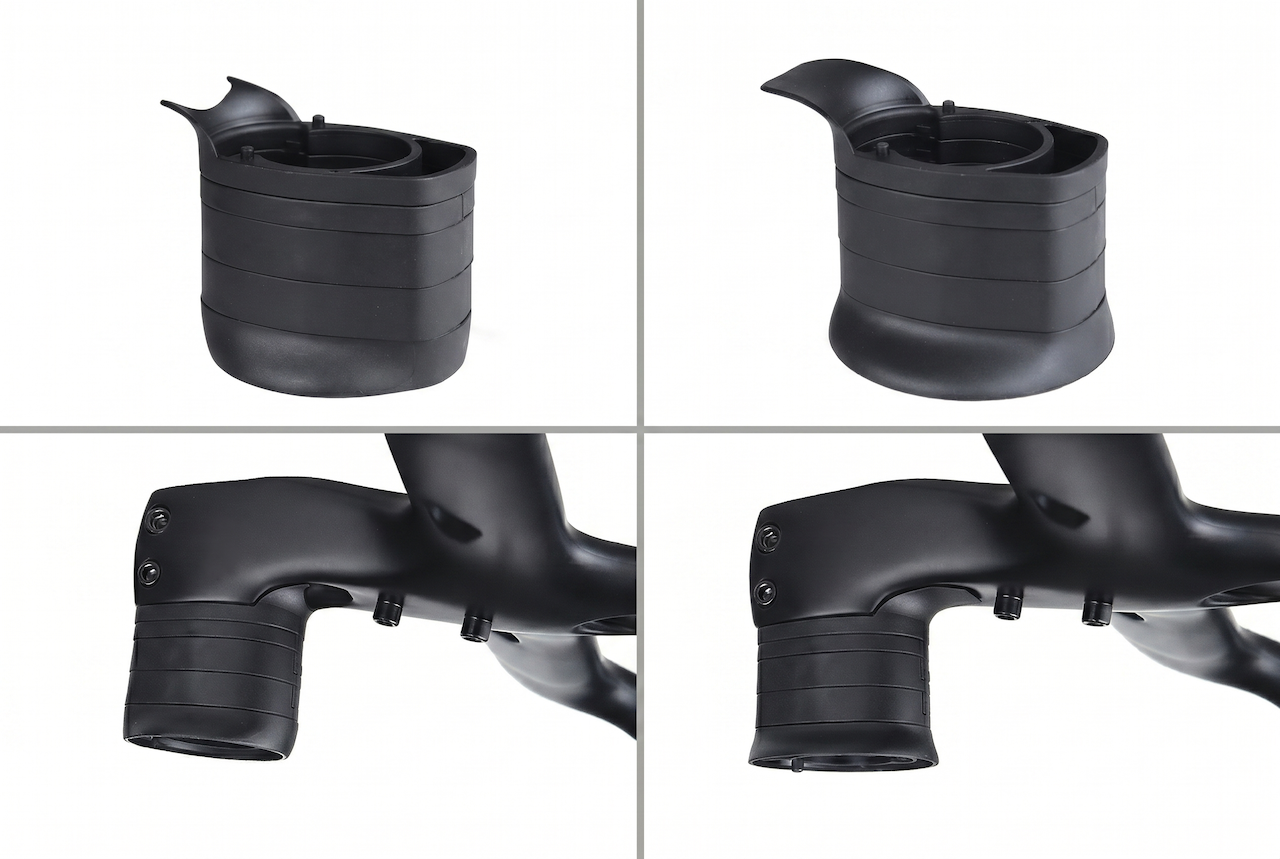

Two Configurations. One Cockpit.
Included transition pieces let you run the cockpit exactly the way your build demands — choose full internal routing for the cleanest possible aesthetic, or internal bar / external frame routing for easier cable management and serviceability. Both configurations are included in the box.

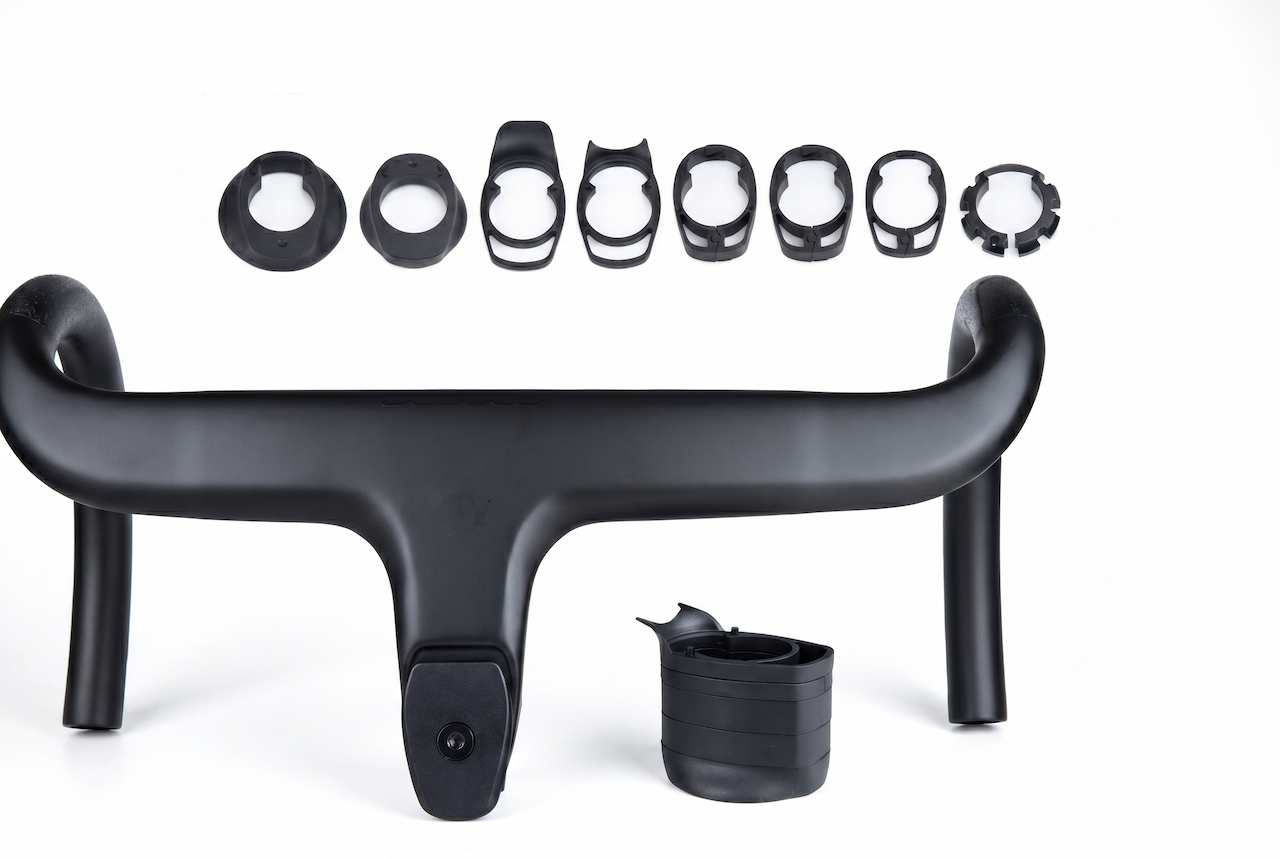

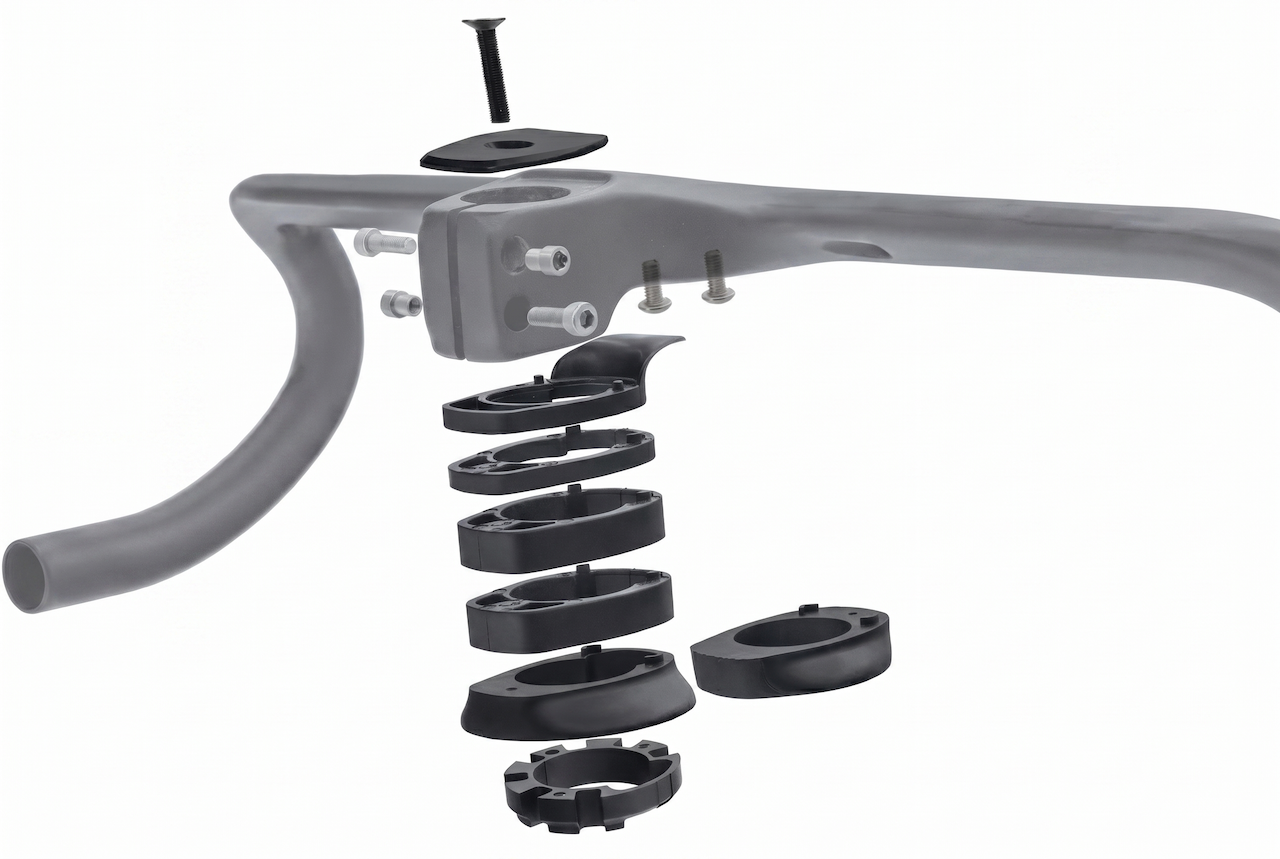

What's Included

• Integrated carbon bar & stem
• Spacers — 2x 10mm, 1x 5mm

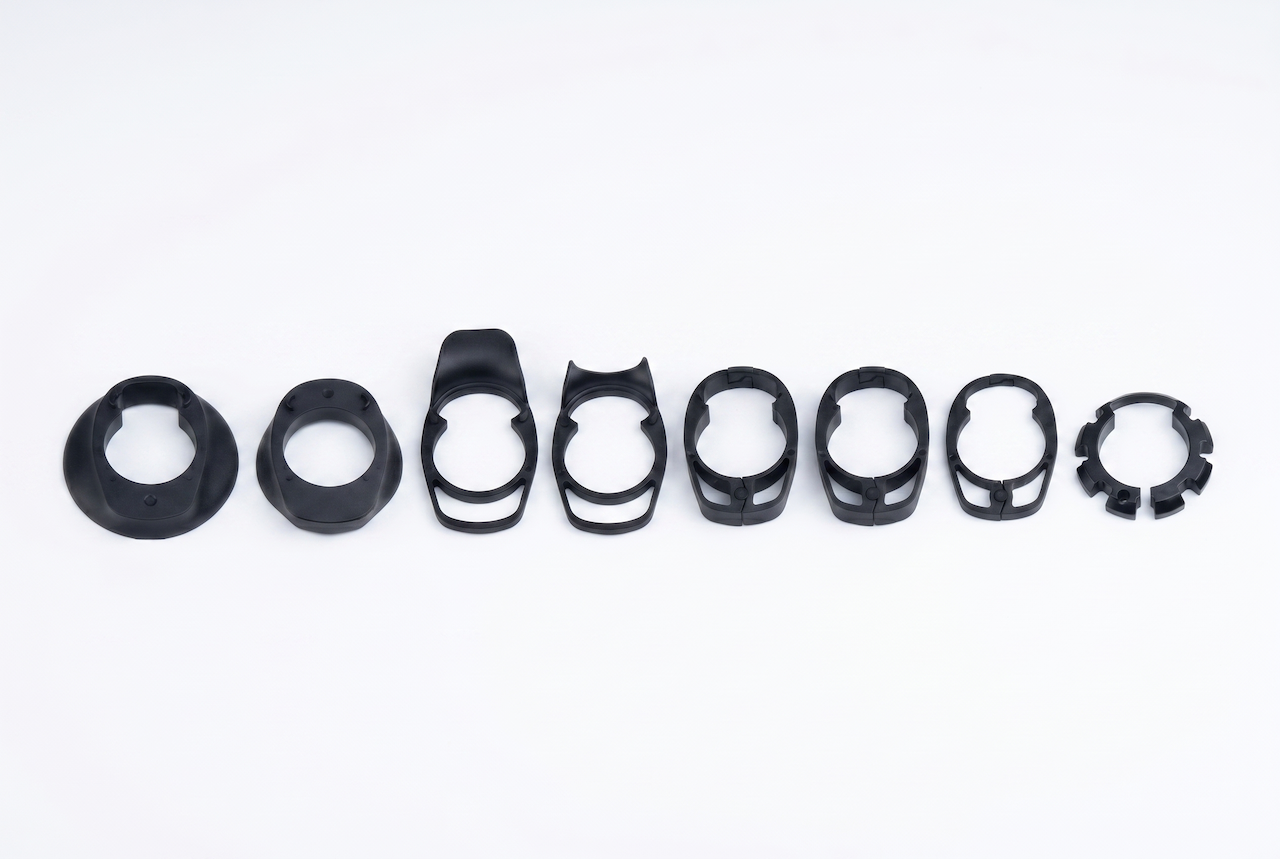

• Transition pieces (full internal & internal bar / external frame)
• Flush aero top cap
• Internal cable management pieces
• Shims
• All mounting hardware

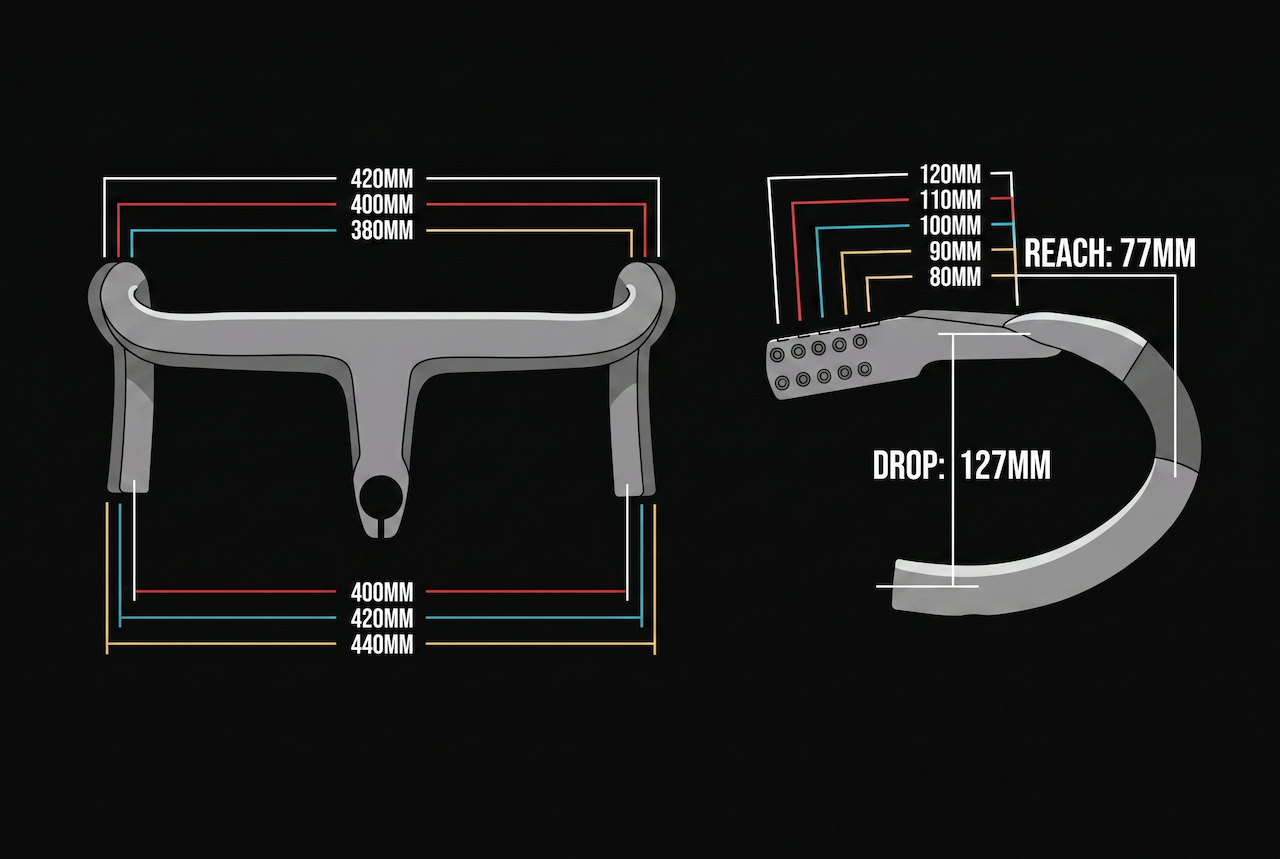

Specifications

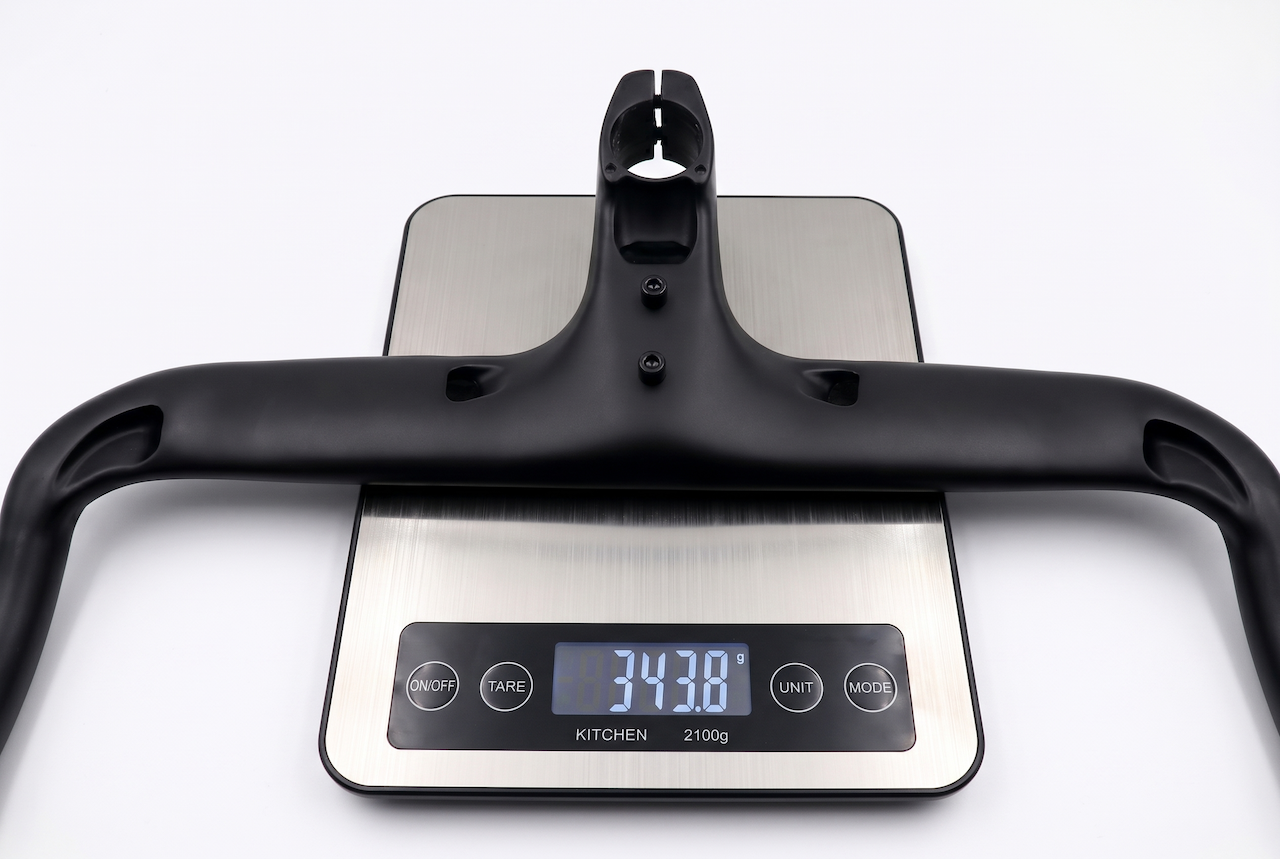

• Weight: ~343g

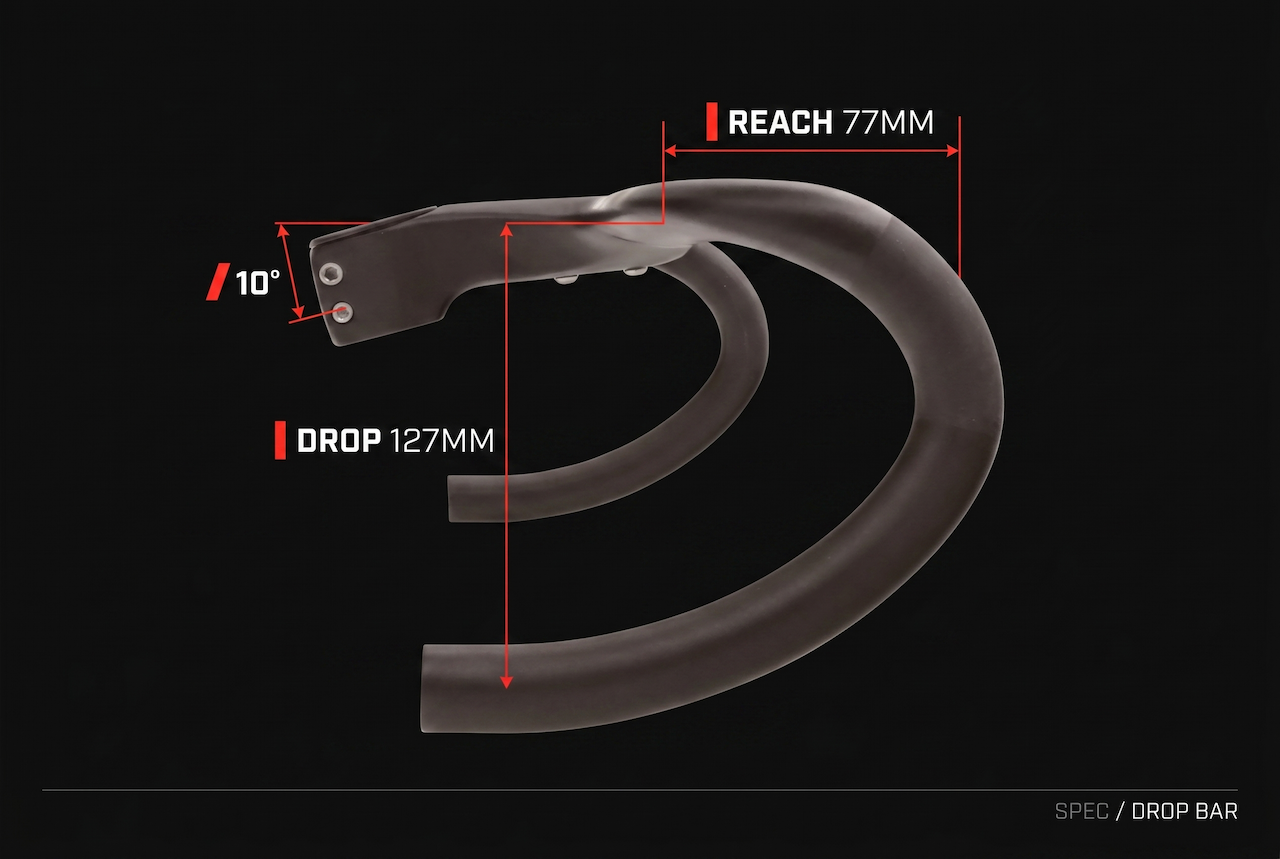

• Stem angle: 10°
• Drop: 127mm
• Reach: 77mm
• Steerer tube stack: 30mm
• Available sizes: 90mm × 38cm | 100mm × 38cm | 110mm × 40cm
• Computer mount compatible (not included)

Compatibility
Compatible with FSA Inroute and MOST IS52 internal routing systems using the included top cap. A shim may be required depending on your frame's headset configuration.
