Undefeated Disc Road - Graphite / Prism
stealthy metallic paint combine with top of the range materials
The new Undefeated line-up has been re-engineered with Y9 aluminum, based on 6061 Aluminium but with added titanium, giving it improved hardness and tensile strength over its predecessor. This new-alloy composition allows for the thinnest possible wall thickness to be used, thereby reducing overall weight....now with disc brakes.
$1,499.99
6852754669655
Get off the track and out of the city on the Undefeated Disc Road; featuring new Y9 Alloy tubing, an oversized tapered head tube, and a full-carbon fork that come together to create a stiff, responsive, and fast ride. The Undefeated Disc Road complete build features a simplified 1x11 drivetrain. Paired with an 11-28T Cassette, the Undefeated Road provides a gear range to meet any challenge on the road. Tubeless compatible wheels and strong disc brakes glide over the road ahead.
The Undefeated Disc Road retains the geometry and style the Undefeated Series is known for now with disc brakes. These simple, mechanical stoppers work reliably in all weather conditions and add stopping power.
[SPECS]
- FRAME: Double-Butted Aluminum w/ Tapered Head Tube
- FORK: Full Carbon Fiber Fork & Steer Tube by Essor USA
- WHEEL SET: Tubeless Capable Disc
- CRANK: State Bicycle Co. All Road 1
- CHAINRING: 46t
- CASSETTE: 11-28t
- HEADSET: FSA No.42/ACB - Integrated and Sealed
- STEM: State Bicycle Co. Black Label OS
- HANDLEBARS: State Bicycle Co. Black Label 31.8 mm Compact Drop Handlebar (40mm / 42mm / 44mm depending on bike size)
-
BRAKES: Tektro Flat Mount Disc
- SEATPOST: Black Label 31.6 mm
- SADDLE: Black Label Microfiber
- TIRES: 28c
- PEDALS: Not Included
- Want to get technical? Full Geo / Specs available here.

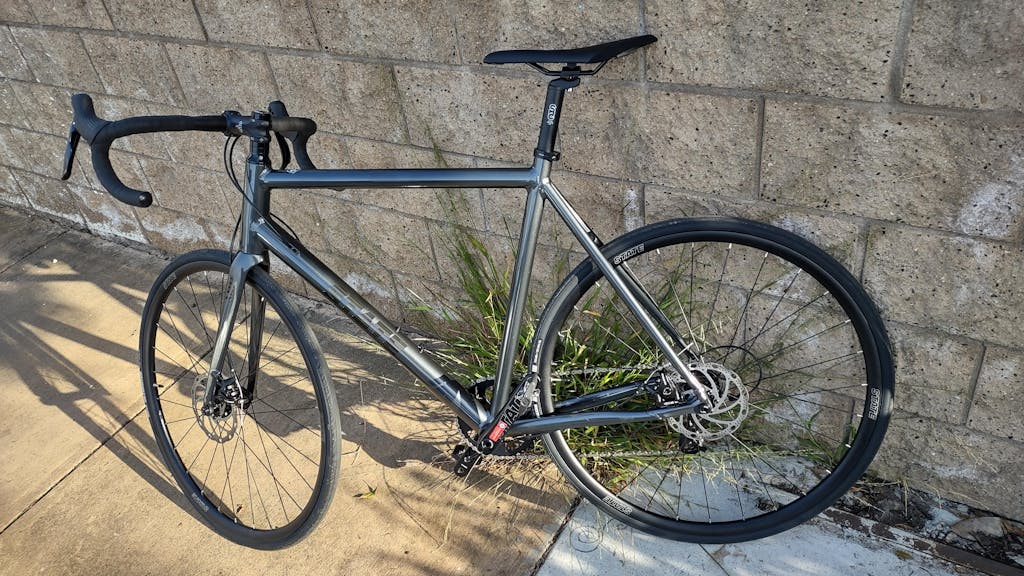

SIZE: 6 Frame Sizes to fit any Rider Height from 4'10" to 6'6" (Size 55 cm Pictured)
Max Recommended Tire Size: 28c x 700 (sizes of 32c x 700 have been fitted by riders, however, fitment varies on wheels used, brand of tires, and other factors)
RETURNS & Exchanges: State Bicycle Co. proudly offers FREE RETURNS for EXCHANGES - please see details of our Return Policy here.
SHIPPING: Most in-stock items ship within 1 business day! Tracking information is provided upon shipment. Learn more about our Shipping Policy
ASSEMBLY: Complete Bicycles will ship 90% built and require only basic tools and knowledge to complete the build. However, a fully assembled bicycle also needs to be tuned and adjusted (oftentimes with specialty tools). We strongly encourage having your bike professionally assembled to validate your warranty and to ensure a safe and lasting ride.
WARRANTY: Warranty activated when you submit proof of professional assembly.
- 5-year Warranty on all bicycle frames
- 1-year Warranty non-consumable parts
- 2-year Warranty on Essor USA products
Learn more about our Warranty Policy.
Size Charts and Specs: Detailed Size Charts and Specs can be found here: Size Charts & Specs.
